LABELLING FOR LARGE NUMBERS


MakroLabelling Mak 2


The MAK 2, 3, 4, 5, 6, 7 and 8 labellers meet the requirements of medium and large companies: they are equipped with special applications and manage high production speeds. Makro Labelling, in perfect synergy with its technical office, is able to develop special machines, fitting special and custom applications upon the customer’s request.
The following labels can be applied by these machines: body, neck, neck wrap, back, “I” “L” “U” seals etc, while production speeds vary from 1,500 b/h to 60,000 b/h.


Cold and hot glue, self-adhesive or combined versions are available (details below).



























Hot melt and cold glue labeller for wraparound and partial labels (MAK 2)


Machine for wraparound label applications using a hot melt system on various sizes of glass or plastic bottles. The machine can be fitted with a cold glue or self-adhesive partial-label application unit. The speed of this model is 22,000 b/h.

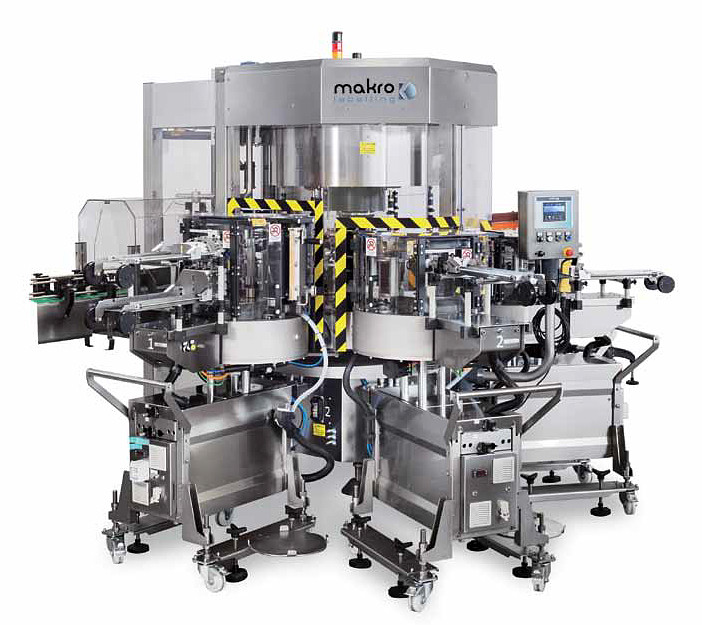

MakroLabelling Mak 2 with trolleys

Cold glue labeller (MAK 2)


A cold glue labelling machine for body, neck, medallion
and back label applications at a speed of 4,500 b/h.


MakroLabelling Cold glue Labeller

Self-adhesive labeller with non-stop system* (MAK 3)


A self-adhesive, non-stop machine for body, promotional medallion and back label application on cylindrical and shaped bottles reaching speeds of 15,000 b/h.
*enables the machine to constantly produce at maximum speed even during coil changing.

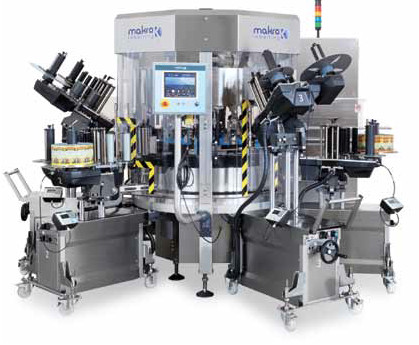

MAK 3 Self-adhesive with non-stop system

High-speed, self-adhesive, non-stop labeller with reel winders (MAK 3)


Self-adhesive machine for application of three front labels and one back label for the glass bottles sector. The machine is equipped with a reel winder (dual reel winder), including a dual reel holder, for the rewinding of paper. It enables continuous operation, without having to stop production to change reels. The speed of the machine slows down only when connecting the label reel, returning immediately to the maximum speed of 20,000 b/h.

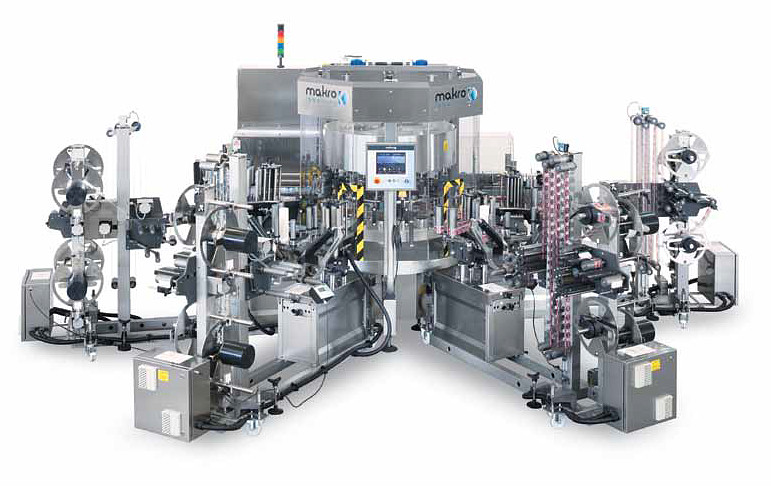

MAK 3 Self-adhesive with non-stop system

Large scale self-adhesive labeller for high production speeds (MAK 7 can be integrated with numerous applications and the non-stop system)


Thanks to the large carousel, the MAK 7 self-adhesive labeller can reach very high production speeds of up to 50,000 b/h. The MAK 7 guarantees integration with a range of applications, the Vision Control system and the Follower. Thanks to its characteristic ample space, reel winders can be added to the self-adhesive labelling groups for non-stop production. Finally, the large size of the MAK 7 allows the operator to work comfortably, safely and conveniently and also facilitates all machine cleaning operations.

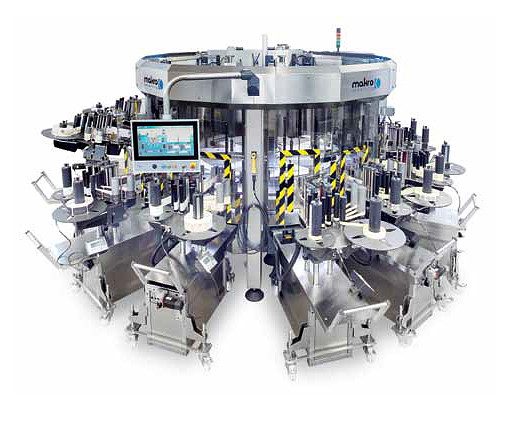

MAK 7 Self-adhesive labeller for high production speeds
Specyfikacja techniczna
ModelMAK 2 / MAK 3 / MAK 4 / MAK 5 / MAK 6 / MAK 7 / MAK 8
Turret diameter780mm / 1040mm / 1350mm / 1560mm / 1800mm / 2160mm / 2400mm
Labelling Units4 / 5 / 6 / 7 / 7 / 8 / 8
No. of Platforms6-42
