› Labeling systems — Systemy etykietujące — MAK 1, MAK 01, MAK 02 (SMALL NUMBERS)
Skontaktuj się z nami - tel. (22) 510 14 50 lub handlowy@rscautoid.pl
 |
MAK 1, MAK 01, MAK 02 (SMALL NUMBERS)nazwa alternatywna: MakroLabelling labelling machine, Mak 01, Mak 02, Mak 1, mak01, mak02, mak1, mak-01, mak-02, mak-1, makrolabelling mak 1, makrolabelling mak 01, makrolabelling 02 Produkt dostępny w magazynie |
|
||||||||
| Materiały, które mogą być Ci przydatne: | |||
ETYKIETY NA ROLI |  | Oprogramowanie | |
| Nawigacja: | |||||
| Opis | Technical details | Files to download | |||
| Opis |
LABELLING FOR SMALL NUMBERS

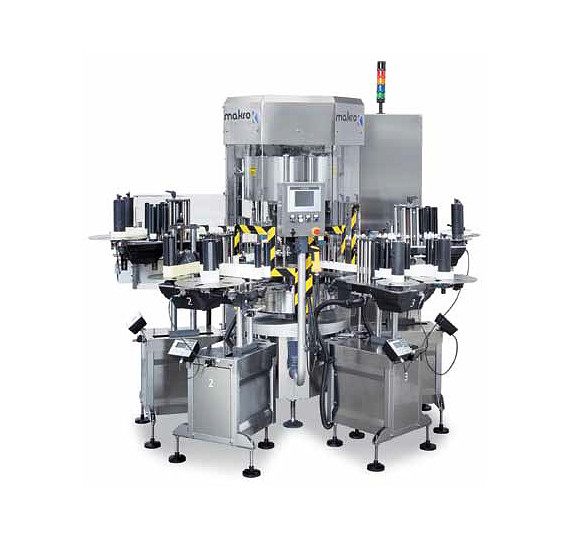

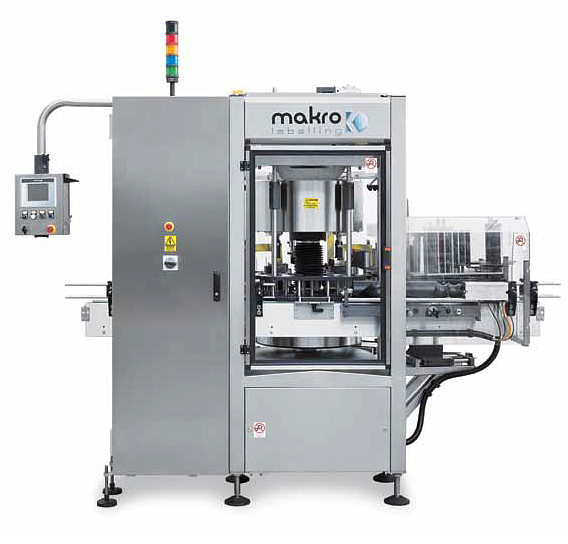

MAK 01, MAK 02 and MAK 1 are Makro Labelling designed labelling machines for companies which do not require high speed productions. The machines maintain the special characteristics of Makro Labelling technology and are equipped with mechanical or electronic bottle holder plate rotation. The 520/780-mm carousel is covered with AISI 304 stainless steel sheet metal. MAK 01, MAK 02 and MAK 1 are produced in various cold and hot glue, self-adhesive or combined versions. On request, the optical centring device (4, 6, 8, 9, 10 or 12 plates) can be installed on these three models. The innovative Follower optical centring device can be installed on the MAK 02. Production speeds vary from 1.500 b/h to 12.000 b/h.
Available units:
- SELF-ADHESIVE LABELLING UNITS
- COLD GLUE LABELLING UNITS
- HOT MELT LABELLING UNITS
- ROLL FEED LABELLING UNITS
| Technical details | |
| Model | MAK 01 / MAK 02 / MAK 1 |
|---|---|
| Turret diameter | 520mm / 780mm / 520mm |
| Labelling Units | 4/5 / 4/5 / 4 |
| No. of Platforms | 4, 6, 8, 10, 12 / 6, 8, 9, 10, 12 / 4, 6, 8, 10, 12 |
